lab for civil engineers!!!!!!!!

BY: @sanjay2011s | CREATED: Jan. 29, 2018, 1:57 p.m. | VOTES: 41 | PAYOUT: $0.76 | [ VOTE ]

hello everyone today i am going to share my college lab. whe we are performing an experiment to know the shear capactity of the beam . the reinforcement used are 10mm and stirrups used is 7mm . me myself being a student of civil engineering , i love to play with aggregate and reinforcement.some of the pictures taken in the lab are as follows. i will also share the result of my practical.arranging reinforcement and rebar for beam[IMAGE: https://steemitimages.com/DQmUPsy88MaFfMxFNG3F7GeYiZgNL3jXyizJmGpDVaB5zMd/IMG_20180128_140928.jpg]
[IMAGE: https://steemitimages.com/DQmcwpMsZ8SFUX4Uh9iGkbtGcWhnGotRu44PyzCjHRnBXjn/IMG_20180128_140931.jpg]
[IMAGE: https://steemitimages.com/DQmfFFDMDLvEfvBcE2hSPGd6m97SWJCm9SZGpFnczgZyeEp/IMG_20180128_141821.jpg]

mixing concrete
[IMAGE: https://steemitimages.com/DQmfEUE1fvGEujEcj6oos2xem92sPYpMuGjuHkTWDM6f5wz/IMG_20180128_140845.jpg]
[IMAGE: https://steemitimages.com/DQmdmfKaGmX8Mm9aPWYyNmVv81iH27GYN6G4R2MydZZQiyf/IMG_20180128_140855.jpg][IMAGE: https://steemitimages.com/DQmd9RMeca97GKSarj7o1Ee3zTapkwF1gQ8wxwn6UTyDfqh/IMG_20180128_141022.jpg]
[IMAGE: https://steemitimages.com/DQmfGpv4w9wH9cFnr3axceFGvopU4jK96McMJBjQJtvhJKm/IMG_20180128_141335.jpg]

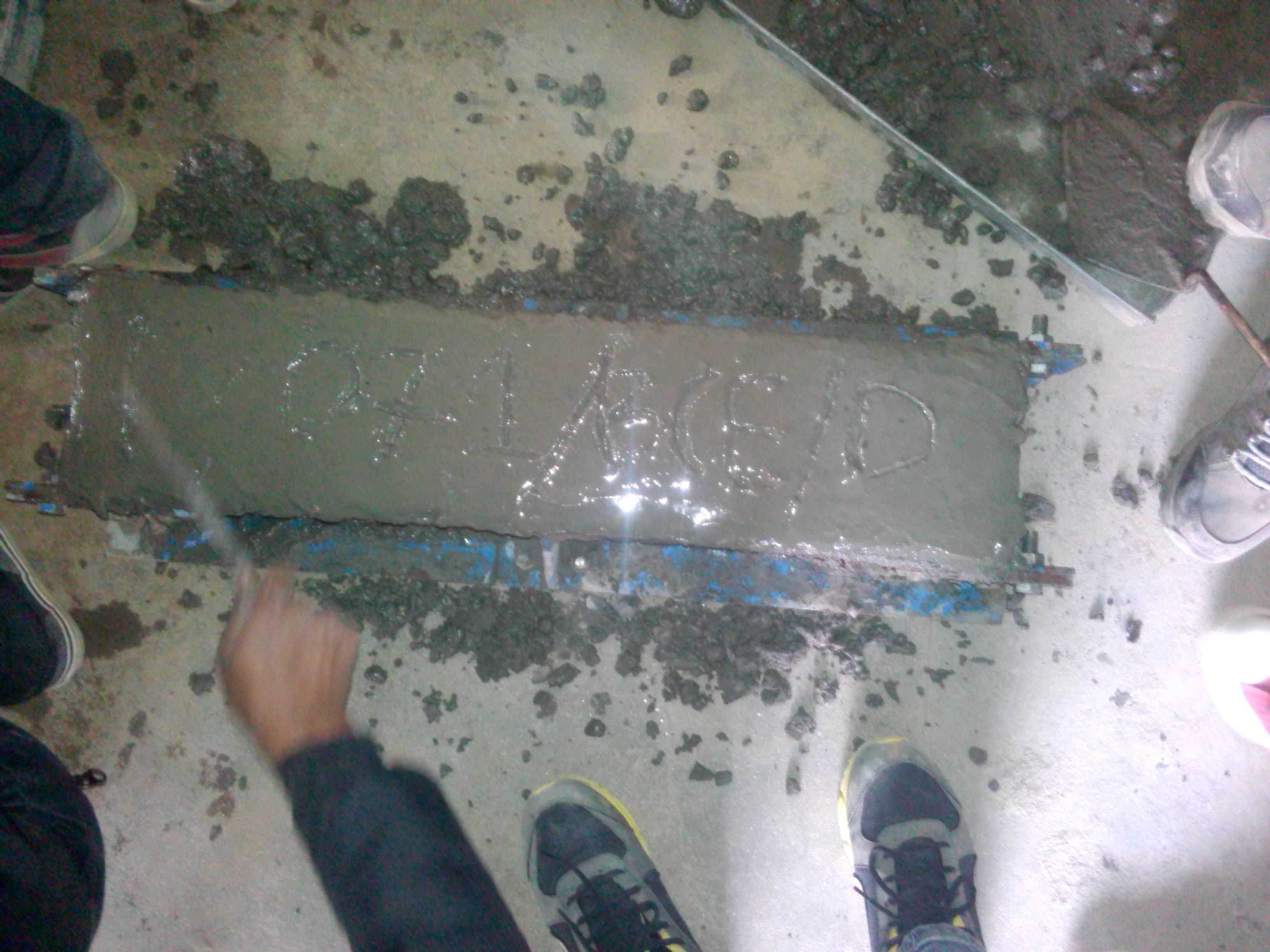

casting beam

[IMAGE: https://steemitimages.com/DQmdsWAWtE45PvnkdLumcQoNfb3ZyMa5PSRFeDtMLqqEyXT/IMG_20180128_143754.jpg][IMAGE: https://steemitimages.com/DQmao19MpWw6o92Q7![IMG_20180128_141009.jpg](https://steemitimages.com/DQmVuCMeXaCqvDQGLgUooj1CsBp1YfbVMSPaSVb6kN32HrV/IMG_20180128_141009.jpg)X9DnJvnDGAEZ5DuZ2QfdBVEzMtJSgr/IMG_20180128_142216.jpg]
this is what our material lab looks like
thank you for reading and stopping by.
